How can wall or beam terminations be aligned?

If the structural entry of a slab cannot be successfully checked because a wall or dropped beam does not terminate at right angles inside another wall or dropped beam, this wall or dropped beam termination can be aligned accordingly.

To align a wall end, proceed as follows:

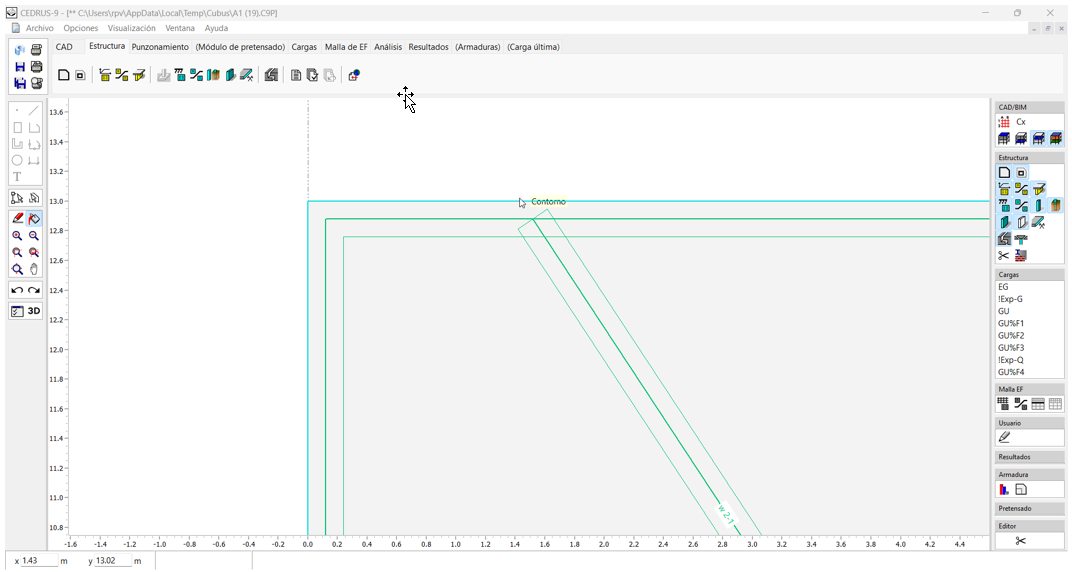

1. Position the cursor on the wall whose end you want to align.

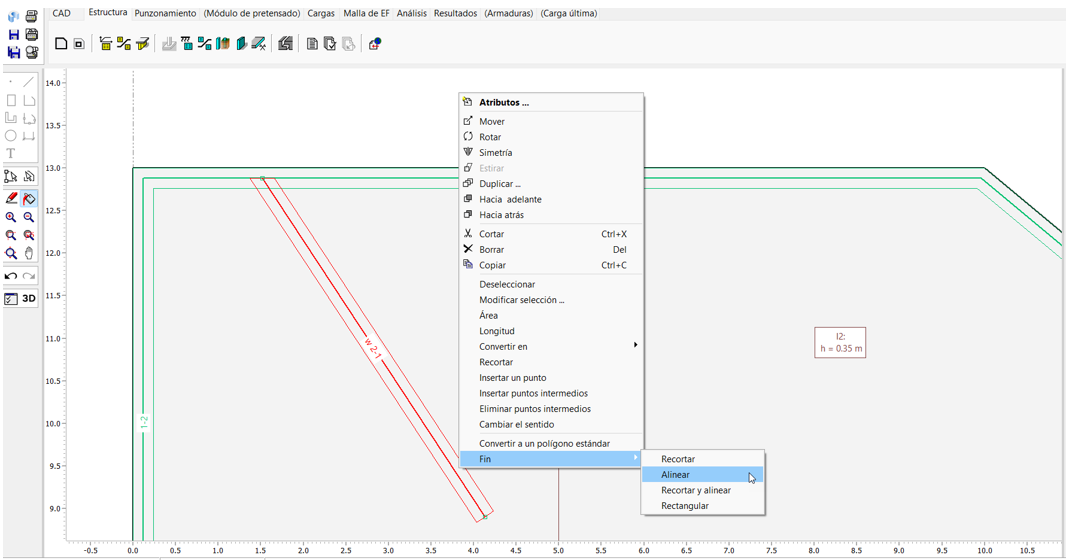

2. Open the context menu by clicking the right mouse button and then select the function “End” → “Align”.
3. Select the end point with the mouse.
4. Then select the direction in which you want to align the end point.

The alignment of beam terminations is carried out in the same way.
